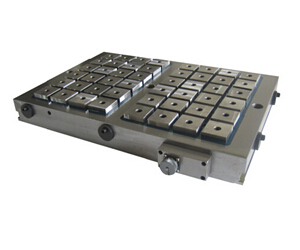

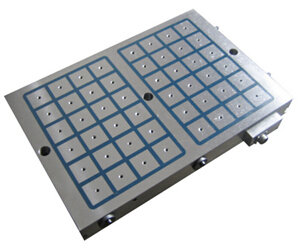

Electro-permanent magnetic chuck
Electric permanent magnet chuck is a new type of magnetic chuck which uses electric pulse to turn on and off magnetic force. Electric permanent magnet chuck does not need electric energy in its work, but only uses electric energy in 1-2 seconds of the process of magnetization and demagnetization, and does not use any energy in its work. The P LC interface can be controlled remotely by a computer to improve the degree of automation without heating or thermal deformation.
Main uses of electro-permanent magnetic chucks:
1. Metal cutting, rapid die change (injection moulding machine, ceramic dry press), magnetic lifting.
2. Metal cutting includes turning, milling, grinding, planer, drilling and CNC machining center applications, without changing the original structure of the machine tool.
3. Quick die change includes injection moulding machine, clamping machine, stamping machine, etc. It saves a lot of adjustment work and has a very fast die change speed.
Main features of the product:
1. Safety, no loss of excitation for 30 years after power failure;
2. Energy saving, more than 95% of electricity saving;
3. Efficiency, increase efficiency by more than 60%.
4. The clamping force can be as high as 20 Kg/cm.
5. Use is very simple, fast, durable and maintenance-free.
Requirements for use:
The thickness of workpiece should be more than 10MM.
The most suitable condition for holding the workpiece is at least four contacts of magnetic poles. With the use of magnetic conducting soft claws and sliding projectiles, more functional workpieces can be processed, such as five-sided processing, drilling, tapping, milling grooves, etc. Complete the processing procedure at one time, irregular and surface bending workpiece can also clamp processing.
|
|
|
|
|
|

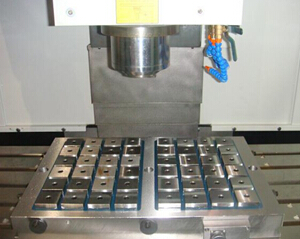

Use diagram |
|
|
|
|
Design sketch |
|
| Sketch Map Chart of Charging and Demagnetization

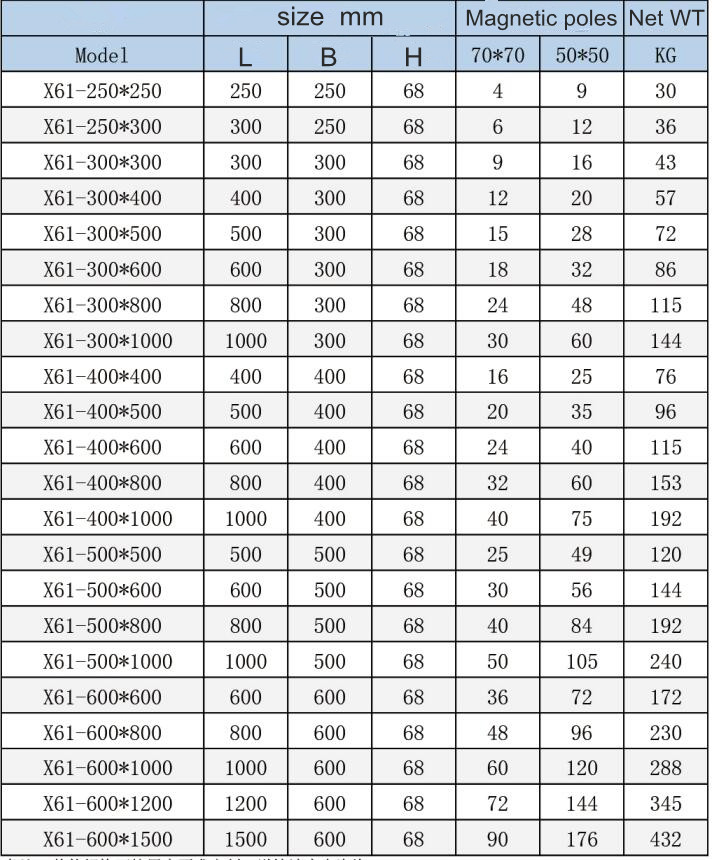

Prodt specification：
Suggestions for use: There are two ways of installation (through hole/block). Please choose products according to the way of installation.
More specifications can be customized.
|
